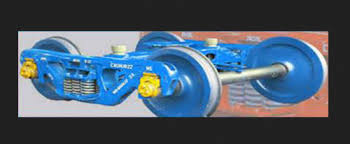

Casnub Bogie : Casnub Bogie 3d Cad Model Library Grabcad, Two cast iron steel frames are connected by spring planks.. Adapter, retainer bolt & side frame key assembly iii. The side frame, elastomeric pad, center pivot, center pivot lock, adapter are similar to nlb version. Casnub bogie for freight stock by jupiter. Each casnub bogie costs around ₹2 lakh. This is a conceptual railway bogie design.

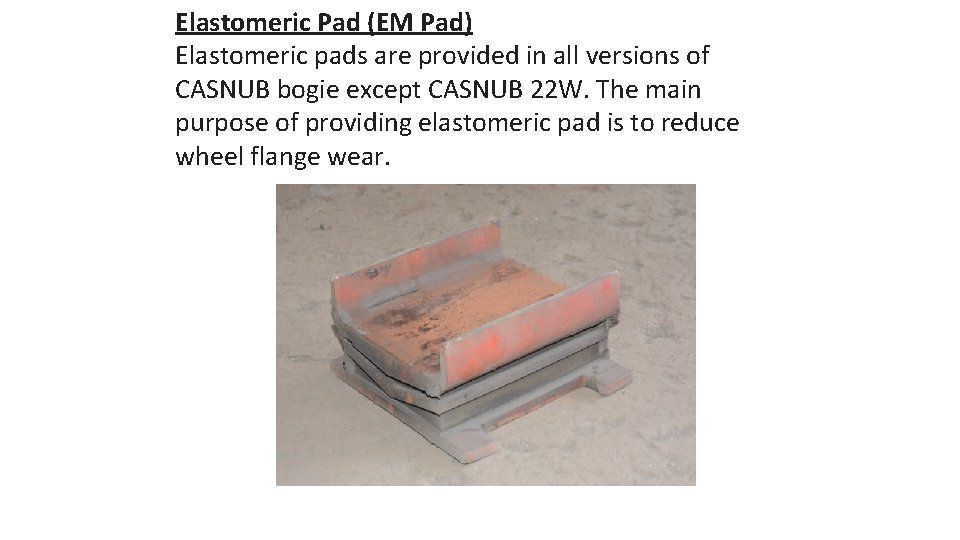

This is a conceptual railway bogie design. The side frame, elastomeric pad, centre pivot, centre pivot lock, adapter are similar to nlb version. The side frame, elastomeric pad, centre pivot, centre pivot lock, adapter are similar to nlb version. Adapter, retainer bolt & side frame key assembly iii. Casnub bogies are fitted with two groups of long travel helical springs nests.

The bolster is mostly same as nlb type except for outer gib opening and higher diameter spigot for the 4i bogie tank wagons with air brakes and casnub 40 bogies. Due to the need of faster turnaround time and higher pay load carrying capacity, weight reduction of components and systems is of utmost importance in railway industry. A fabricated mild steel spring plank connects the side frames. Wheel set with cartridge bearing ii. Wheel, tread and axle nomenclature axle journal collar wheel seat disc tread Casnub bogie में casnub शब्द का मतलब. Casnub bogie में casnub शब्द का मतलब.

This is a conceptual railway bogie design.

Another low type lwlh type of 25t axle load bogies are the most recent design of indian railways. Casnub bogies are fitted with two groups of long travel helical springs nests. Low height concor bogies are used on container flat wagons. The bolster is mostly same as nlb type except for outer gib opening and higher diameter spigot for the spring seat. The spring group for bogie for various axle load application are shown in fig below. Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on youtube. A fabricated mild steel spring plank connects the side frames. केसनब बोगी का उपयोग भारतीय रेलवे में सभी एयर ब्रेक वाले माल गाड़ियों में किया जाता है.casnub दो शब्दों cas और snub को मिला कर बनाया. The casnub bogie was first lesied in Automatically adjust to the deviation in the centre line of the axle during run. Casnub bogie में casnub शब्द का मतलब. Each casnub bogie costs around ₹2 lakh. Reducing weight translates into higher performance and.

Due to the need of faster turnaround time and higher pay load carrying capacity, weight reduction of components and systems is of utmost importance in railway industry. The bolster is mostly same as nlb type except for outer gib opening and higher diameter spigot for the spring seat. Concor lccf 20 c bogie; The bolster is mostly same as nlb type except for outer gib opening and higher diameter spigot for the spring seat. Autokast, once listed for privatisation, has made a remarkable turnaround with the present left democratic front government injecting money into the company.

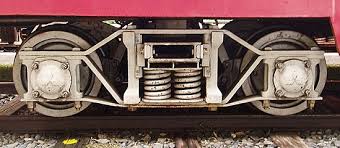

The bolster is supported on the side frame through groups of nested helical springs. Public sector unit will dispatch first of the four casnub bogies to amritsar on friday come august 6, a brand new chapter will be added to the industrial. The bolster is mostly same as nlb type except for outer gib opening and higher diameter spigot for the spring seat. A fabricated mild steel spring plank connects the side frames. Adapter, retainer bolt & side frame key assembly iii. The casnub bogie was first lesied in About press copyright contact us creators advertise developers terms privacy policy & safety how youtube works test new features press copyright contact us creators. The initial batch of casnub bogie was fitted with cylindrical rollerbearing axle box and matching wheel set.

This also provides a friction damping proportional to load.

Wheel set with cartridge bearing ii. Low height concor bogies are used on container flat wagons. Wheel, tread and axle nomenclature axle journal collar wheel seat disc tread केसनब बोगी का उपयोग भारतीय रेलवे में सभी एयर ब्रेक वाले माल गाड़ियों में किया जाता है.casnub दो शब्दों cas और snub को मिला कर बनाया. This was later modified as casnub 22w(m) to take care of high wheel wear reported on earlier version. The casnub bogie comprises of two cast steel frames and a floating bolster. Side frames with friction plates iv. Concor lccf 20 c bogie; Two cast iron steel frames are connected by spring planks. Reducing weight translates into higher performance and. Casnub bogies and its variants are used in most of the box, covered, tank type of wagons. The bolster is mostly same as nlb type except for outer gib opening and higher diameter spigot for the A casnub bogie built by autokast.

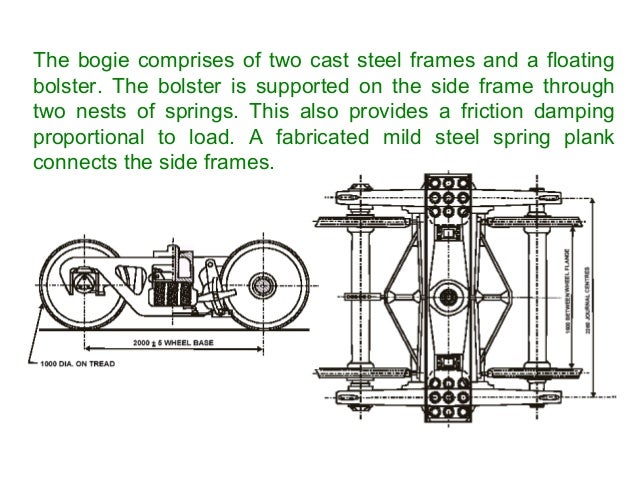

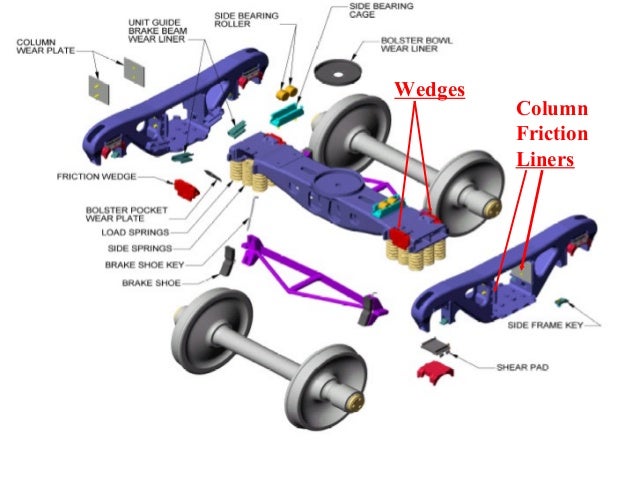

Casnub bogie में casnub शब्द का मतलब. Casnub bogie consists of two cast iron frames, floating bolster, mild steel spring plank, nested springs, and friction snubbers. The side frame, elastomeric pad, centre pivot, centre pivot lock, adapter are similar to nlb version. This also provides a friction damping proportional to load. The bolster is mostly same as nlb type except for outer gib opening and higher diameter spigot for the
